產品：K47
產品特性:
■特點：
☆具有拉動工件的功能，表現出優良的外形加工精度。
☆具有防塵結構，卡盤內部不會有異物進入，表現出優良的耐久性。
☆由于采用了TOP JAW 的更換方式，工藝變更十分便利。
■Specificity:
☆It has a function of draw down and is superior in accuracy of dimension.
☆With the structure of the dust-proof , no foreign substance can be infiltrated into inside of the chuck and is superior in durability.
☆Various top jaw for different workpieces can be readily exchanged..
☆Matched with soft jaws.
產品詳情

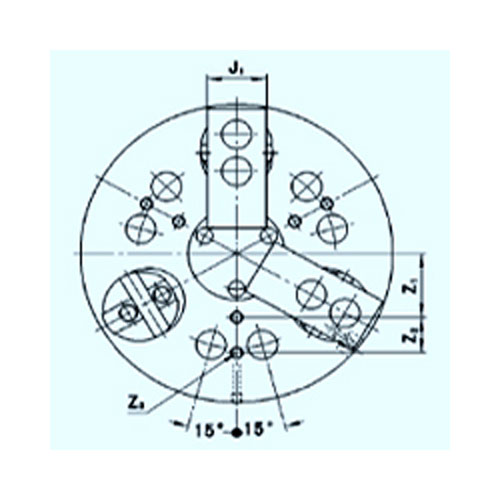

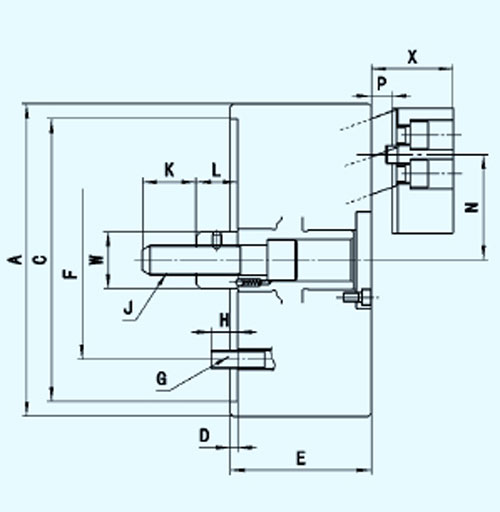

■尺寸參數 Dimension Parameters
|
規格
Size
|
A
|
C(H7)
|
D
|
E
|
F
|
G
|
H
|
J
|
J1
|
K
|
LMAX/MIN
|
N MAX/
MIN
|
P MAX/
MIN
|
W
|
X MAX/
MIN
|
Z1
|
Z2
|
Z3
|
|
200
|
210
|
190
|
5
|
95
|
133.4
|
6-M12
|
18
|
M20
|
40
|
36
|
38/28
|
71/67.4
|
14/4
|
38
|
55/45
|
45
|
25
|
M8-16
|
|
250
|
254
|
230
|
5
|
110
|
171.4
|
6-M16
|
22
|
M24
|
50
|
46
|
47/32
|
85/79.6
|
19/4
|
50
|
65/50
|
55
|
30
|
M8-16
|
|
315
|
304
|
230
|
5
|
125
|
171.4
|
6-M16
|
22
|
M27
|
60
|
50
|
47/32
|
102/96.6
|
19/4
|
52
|
70/55
|
70
|
35
|
M10-20
|
■性能參數 Characteristic Parameters
|
規格
Size
|
爪行程t
（直徑）
Jaw stroke
(Dia.)
|
柱塞行程
Plunger stroke
|
最大、最小夾緊直徑（外徑）
Recommended outside chucking diameter for standard soft blank jaw
|
最高使用轉數r/min
Max. speed
|
許用推拉力kN
Max. draw pull
|

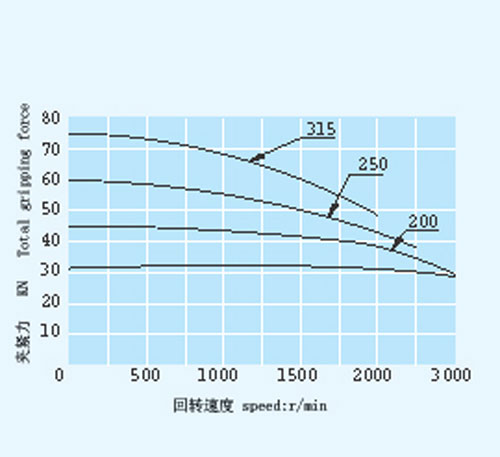

最大夾緊力kN
Max gripping force
|
凈重kg
Net WT.
|
|
|
|
|
200
|
7.2
|
10
|
210
|
40
|
3000
|
25
|
45
|
26
|
|
250
|
10.8
|
15
|
254
|
50
|
2500
|
35
|
60
|
45
|
|
315
|
10.8
|
15
|
304
|
50
|
2000
|
45
|
75
|
70
|
|
