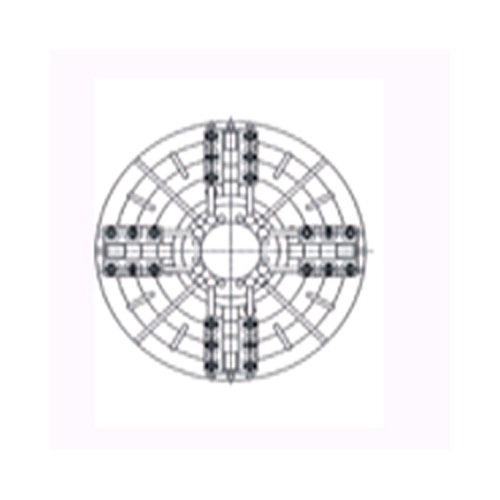

產品：K78口/口
產品特性:
■特點：
☆單動可調，適用各種形狀工件的加工。
☆卸掉卡爪，可單獨作花盤使用。
☆廣泛用于大型立車。
☆A2型連接。
■Specificity:
☆Independent and adjustment ，suitable for processing all kinds of special-shaped workpieces.
☆Unloading Jaws can be used as face plate.
☆It is widely used in large-scale lying.
☆From A2.
產品詳情

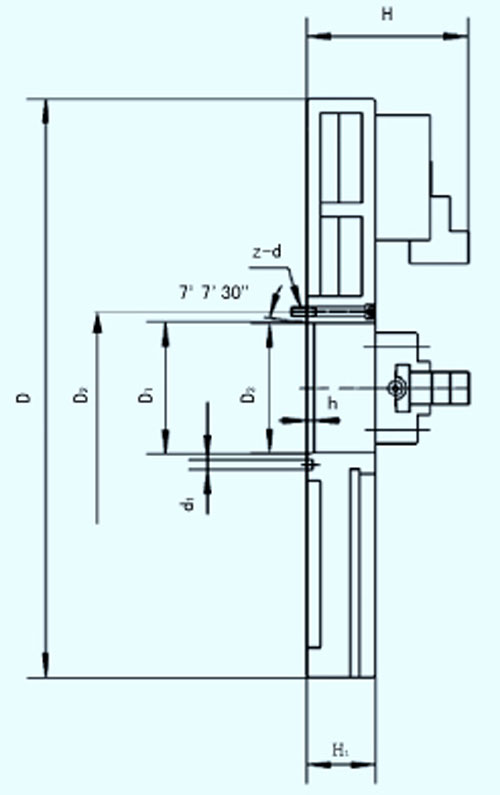

■尺寸、性能參數(shù) Dimension、Characteristic Parameters
|
規(guī)格
Size
|
主軸頭號
short taper No.
|
D
|
D1
|
D2
|
D3
|
H1
|
H
|
h
|
d1
|
z-d
|
|
1000
|
11
|
1000
|
196.869
|
235
|
180
|
150
|
355
|
20
|
29.4
|
8-M20
|
|
1000
|
15
|
1000
|
285.775
|
330.2
|
280
|
150
|
355
|
21
|
35.7
|
8-M20
|
|
1000
|
20
|
1000
|
412.775
|
463.6
|
305
|
150
|
355
|
23
|
42.1
|
8-M24
|
|
1250
|
11
|
1250
|
196.869
|
235
|
180
|
150
|
355
|
20
|
29.4
|
8-M20
|
|
1250
|
15
|
1250
|
285.775
|
330.2
|
280
|
150
|
355
|
21
|
35.7
|
8-M20
|
|
1250
|
20
|
1250
|
412.775
|
463.6
|
305
|
150
|
355
|
23
|
42.1
|
8-M24
|
|
1400
|
15
|
1400
|
285.775
|
330.2
|
280
|
150
|
355
|
21
|
35.7
|
8-M20
|
|
1400
|
20
|
1400
|
412.775
|
463.6
|
305
|
150
|
355
|
23
|
42.1
|
8-M24
|
|
1600
|
15
|
1600
|
285.775
|
330.2
|
280
|
150
|
370
|
21
|
35.7
|
8-M20
|
|
1600
|
20
|
1600
|
412.775
|
463.6
|
305
|
175
|
370
|
23
|
42.1
|
8-M24
|
|
2000
|
15
|
2000
|
285.775
|
330.2
|
280
|
175
|
380
|
21
|
35.7
|
8-M20
|
|
2000
|
20
|
2000
|
412.775
|
463.6
|
305
|
175
|
380
|
23
|
42.1
|
8-M24
|
|
